A diesel engine is an internal combustion engine that mainly uses the combustion of diesel fuel to generate energy. It has the characteristics of high efficiency, high power and durability, and plays an important role in the fields of industry, transportation and agriculture. With the advancement of technology, the performance of diesel engines will be further improved. A well-known manufacturer uses a 3D scanner to carry out 3D scanning and reverse modeling.

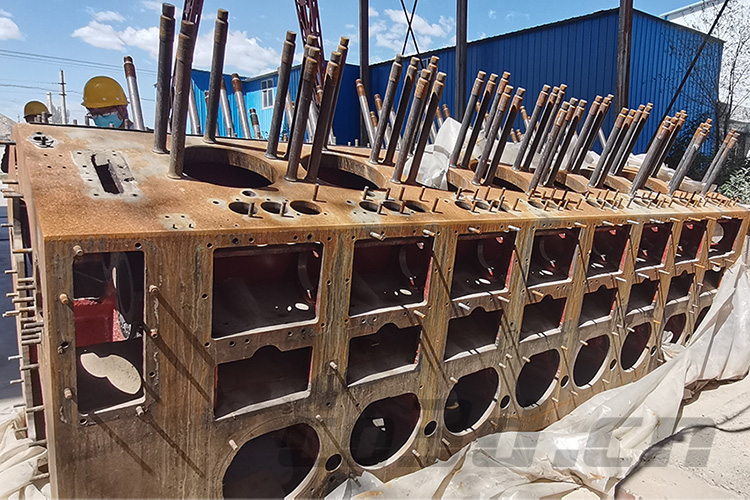

        The internal structure of the workpiece is complex and changeable, the volume is huge, the measurement workload is large, the measurement speed needs to meet customer requirements, and there are many holes on the surface, which greatly increases the difficulty of collecting detailed data of the part.

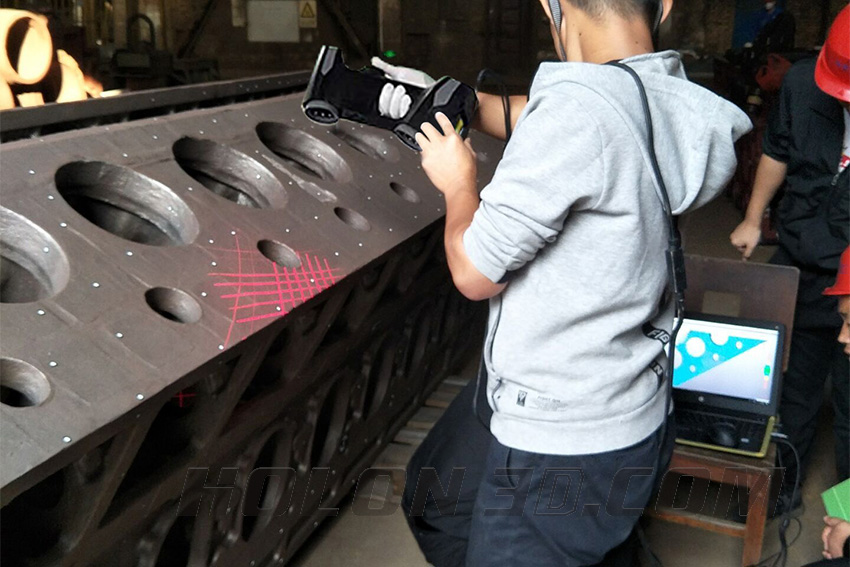

Scan site map

        According to the problems faced, HOLON3D engineers use the handheld 3D scanner Model 37 to quickly switch the corresponding scanning mode for different features. The tiny features of the parts can also be perfectly captured, enriching the detailed data, and the maximum scanning accuracy can reach 0.01mm. For scanning large-volume parts, the large-scale mode is used to maximize the use of cross lasers, with a speed of up to 2.02 million times/second, to quickly capture data and generate contour data instantly. Import the scanned 3D data into reverse design software for reverse modeling. Improve work efficiency and solve customer needs.

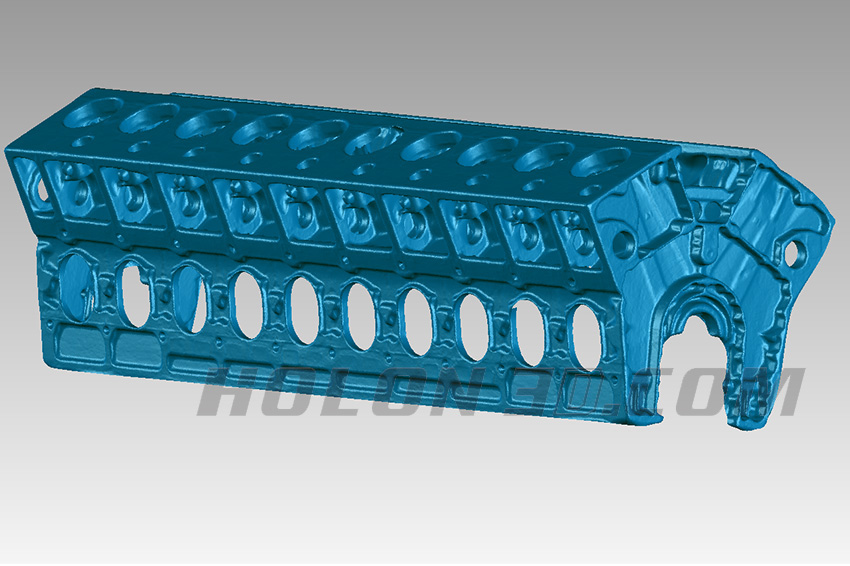

Diesel engine STL data chart 1

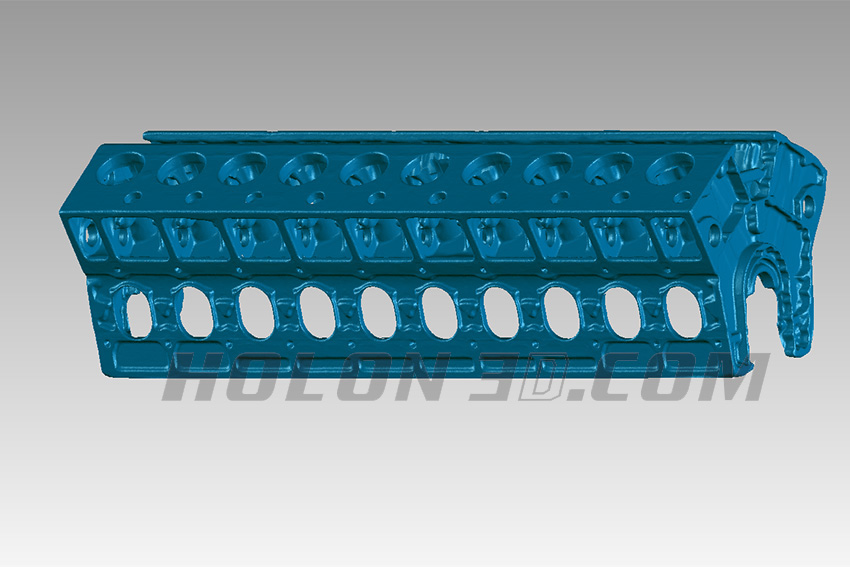

Diesel engine STL data chart 1
