Tricycles are a commonly used lightweight means of transportation in today's society and can play a great role in carrying people and transporting goods. The overall safety of a tricycle depends entirely on the frame of the tricycle. As an important part of the electric tricycle, quality control has become a top priority.

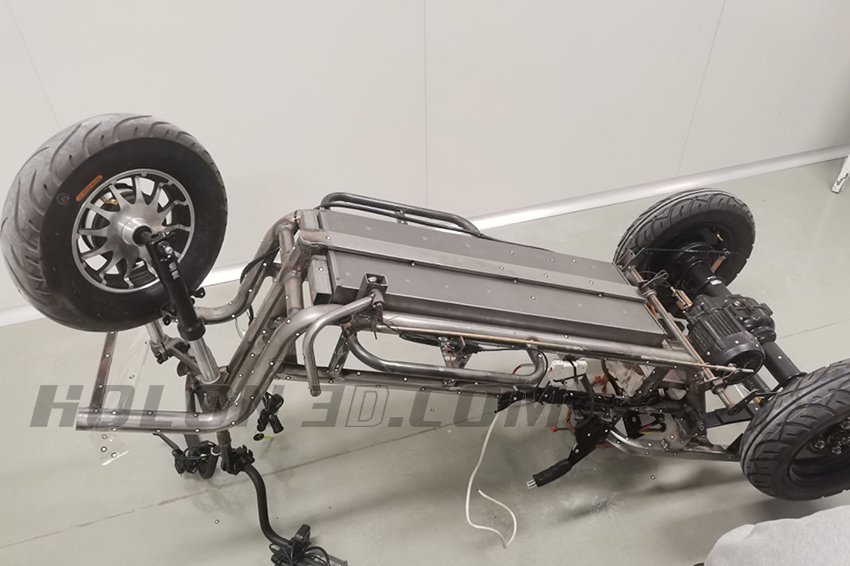

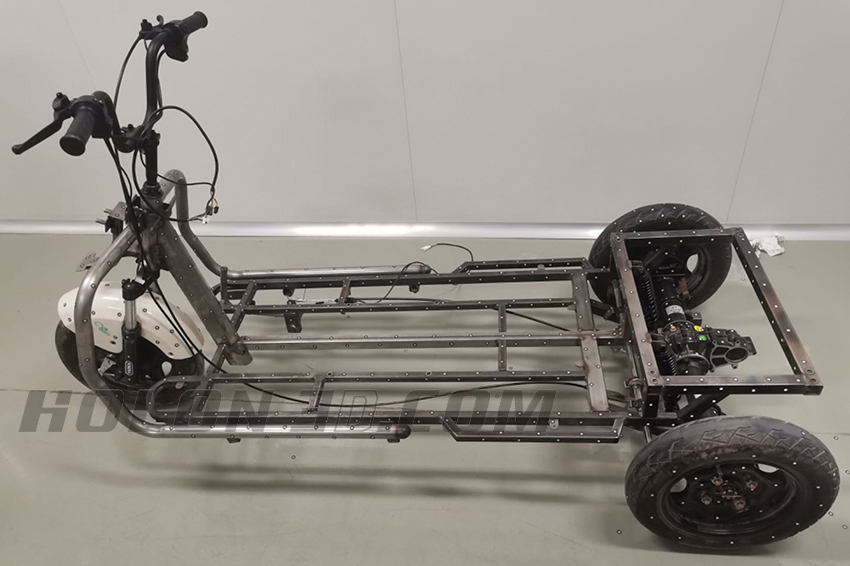

The customer requires a 3D scanner to scan high-precision and complete data with high efficiency, detect actual processing errors, and ensure driving safety in the future. The three-wheeled frame is an alloy tube frame structure with a large arc. It is difficult to use traditional measurement methods to quickly and accurately obtain the three-dimensional model data of the electric vehicle frame.

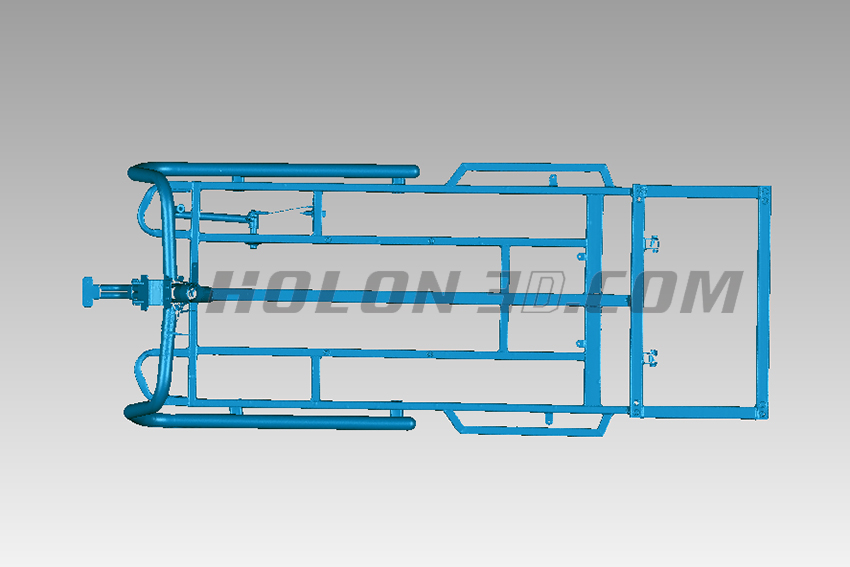

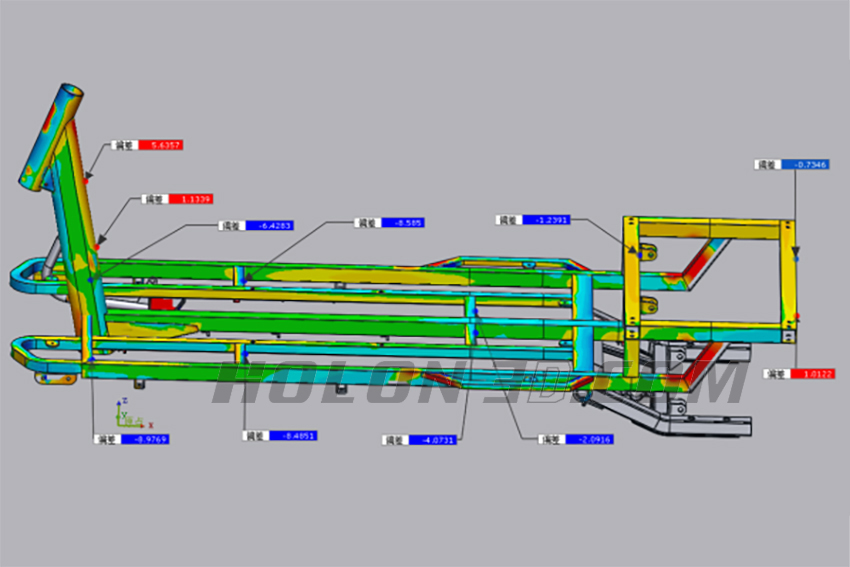

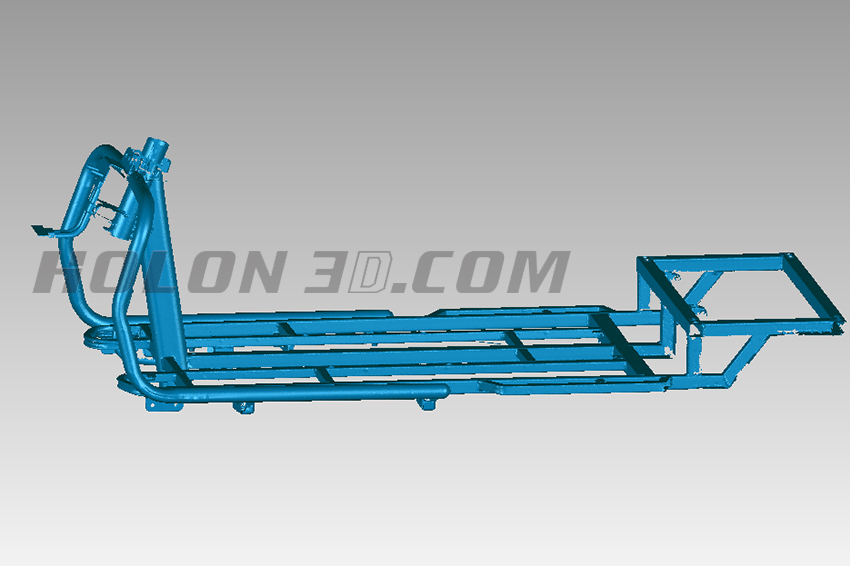

Equipment used: Handheld 3D scanner A22, using 14 laser lines + 7 fine modes + 1 deep hole mode, with a scanning speed of 1,350,000 measurements/second, which can quickly complete the scanning work; the accuracy is as high as 0.02mm, dual industrial cameras, logo Automatic point stitching technology and self-developed scanning software combine to achieve high scanning accuracy and work efficiency. Obtain a simple and easy-to-understand 3D inspection report by comparing it with the original data.
