Holonscan

Tracking Industrial 3D Scanner

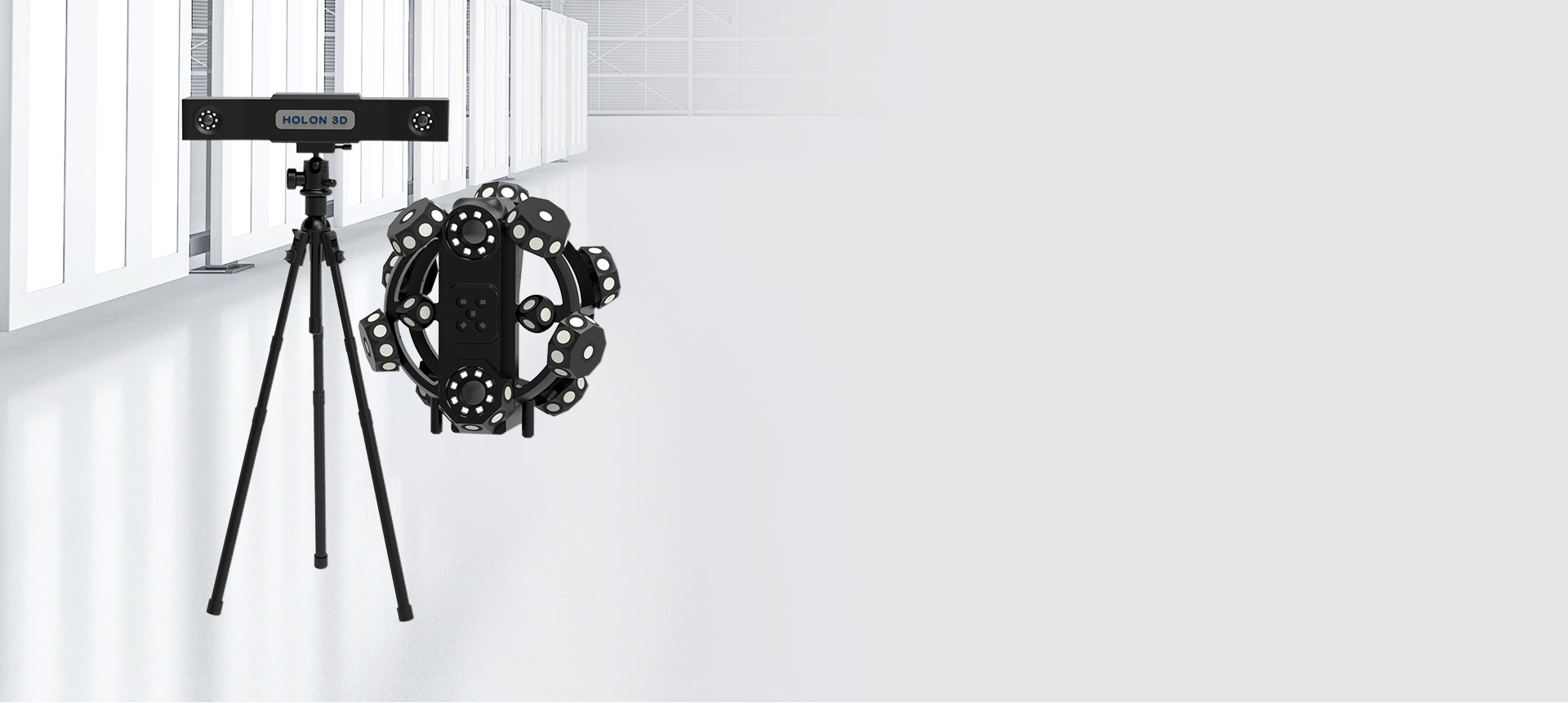

Holonscan Tracking Industrial 3D Scanner Handheld Device: Equipped with a total of 49 blue laser lines, utilizing 34 intersecting blue laser lines for high-speed scanning + 14 intersecting blue laser lines for precise scanning + 1 blue laser line specifically for deep hole scanning; eliminating the need for attaching markers on the workpiece, not limited by the surface color of the workpiece, adaptable to various working conditions, enabling measurement anytime, anywhere.

Back to list

Specification parameters

Model		Holonscan Tracking Industrial 3D Scanner
Scanning Mode	Large Area Scanning Mode	34 Intersecting Blue Laser Lines
	Standard Scanning Mode
	Fine Scanning Mode	14 Intersecting Blue Laser Lines
	Deep Hole Scanning Mode	1 Blue Laser Line
Accuracy	0.02 mm
Tracking Scan Distance	3500 mm
Volume Accuracy Level 1	10.4 m³(Tracking Scan Distance:3500mm):0.06 mm
Volume Accuracy Level 2	0.044 mm + 0.012 mm/m (with HL-3DP global photogrammetry system)
Resolution	0.01 mm - 10 mm(Adjustable)
Scanning reference distance	300 m
Maximum scanning area/dimension	600 mm × 550 mm
Scanning speed(Max)	4,200,000point/s
Scanner dimensions	235mm × 238mm × 155mm
Scanner weight	(Tracking the fixed end)
The size of the tracker	580mm × 140mm ×106mm
The weight of the tracker	2.0kg (Tracking Fixed End)
Output Format Compatibility	Customizable for ASC, STL, PLY, OBJ, IGS, WRL, XYZ, TXT, and other formats.
Temperature/Humidity (Non-condensing)	-10°C–40°C / 10-90% RH
Data Interface	USB3.0
Computer Configuration	Graphics Card: NVIDIA Series, RTX 4090; Video Memory: 16 GB; Processor: Intel i7-13700h or above; RAM: ≥64 GB Operating System: Windows 10 or above (Pro Edition), 64-bit
Patent Certificate	ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4
