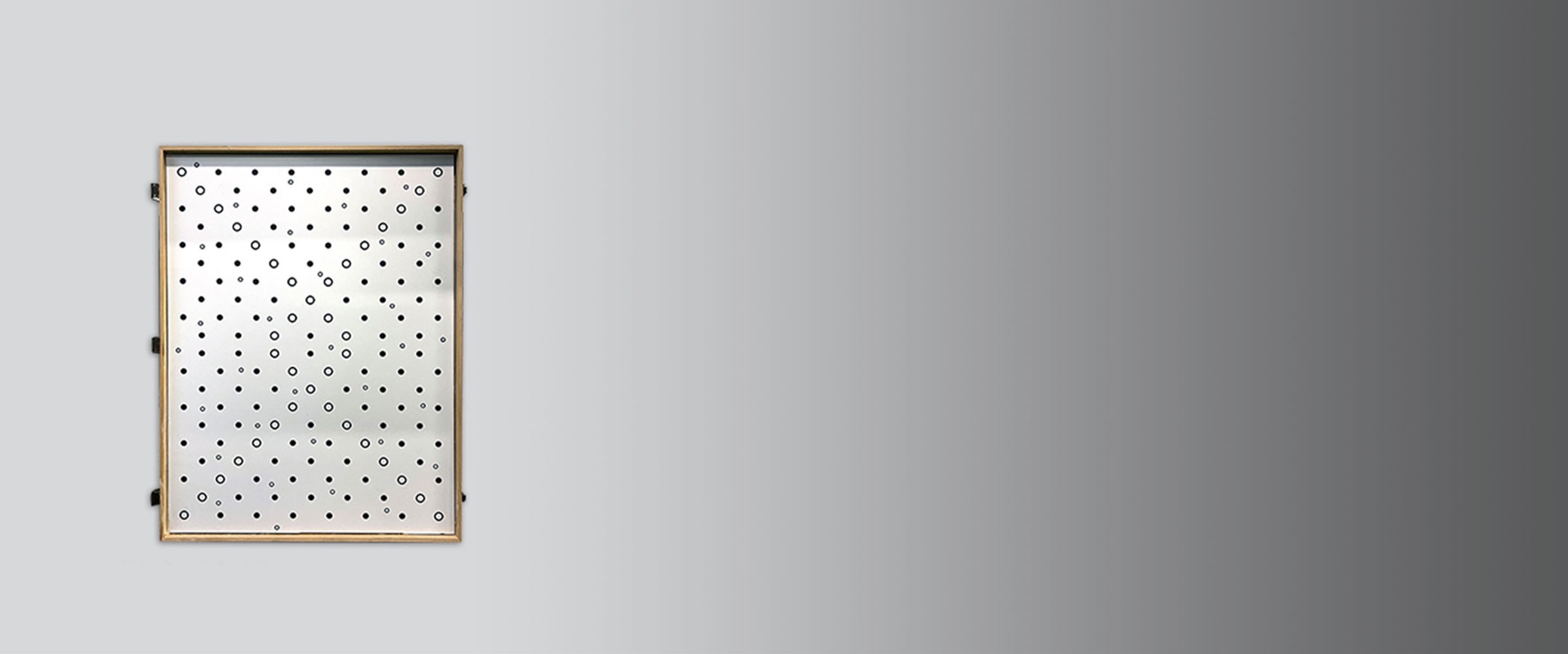

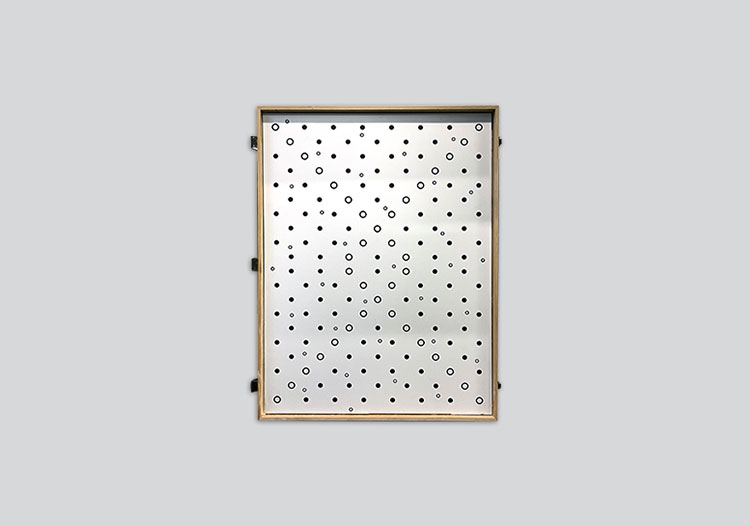

Machine Vision Calibration Patterns
The machine vision calibration patterns are flat plates with arrays of patterns featuring fixed spacing. By capturing images of these plates with a camera and subsequently applying calibration algorithms, the geometric model of the camera can be derived. This, in turn, enables high-precision measurement and reconstruction results to be achieved.
Back to list
Product features
Product Features
Product Features
  • The machine vision calibration patterns guarantee measurement accuracy by employing photolithographic processes that ensure the patterns have clear, complete, and sharp boundaries, resulting in excellent recognition capabilities. They are equipped with automatic corner detection functionality, eliminating the need for complex manual corner point processes. The patterns feature a distinctive black-and-white contrast for superior quality, and they are calibrated using specialized instruments with a grid-by-grid approach for target cells and overlay corner points, ensuring precision through thorough calibration techniques.
