Magic_Multi-functional 3D Scanner_Introduction and Technical Parameters

Magic

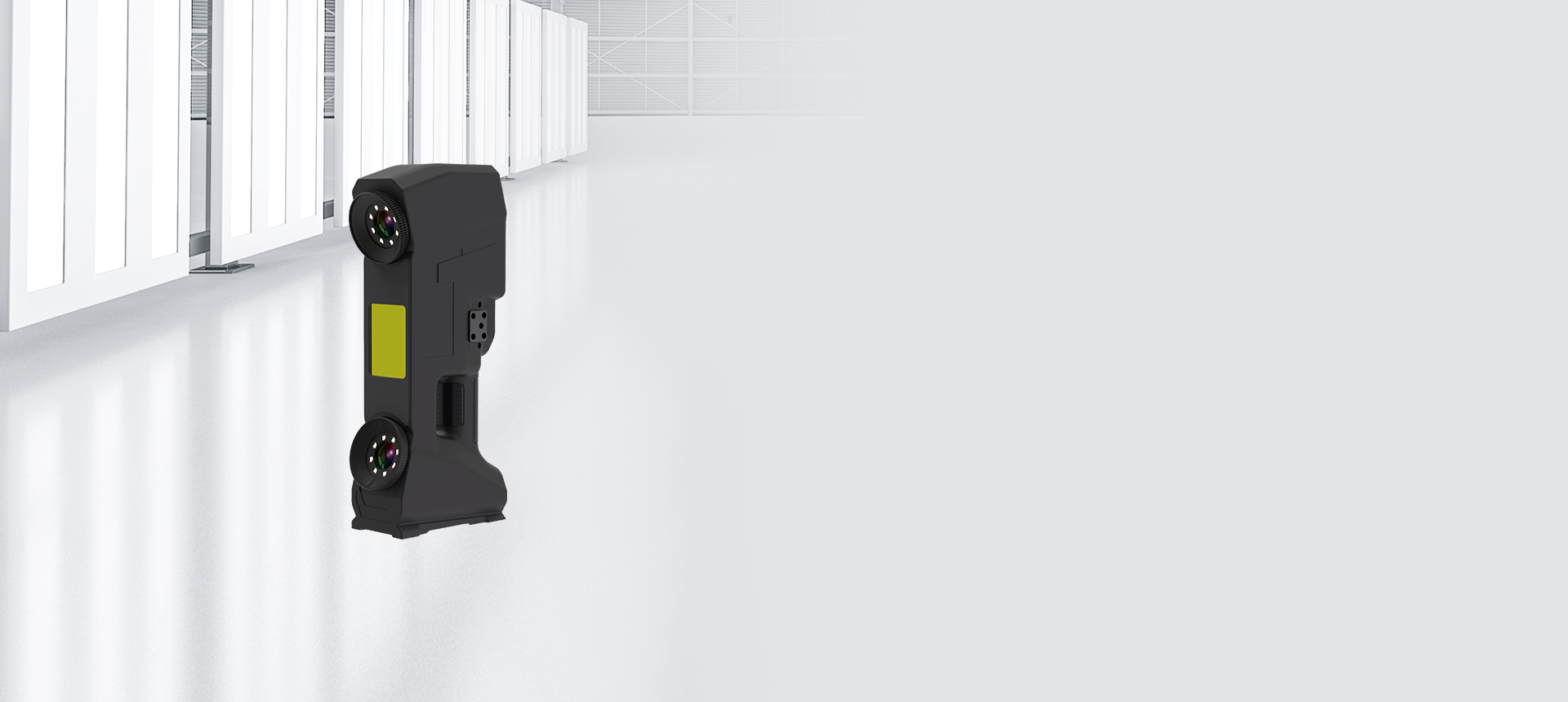

Multifunctional Industrial 3D scanner

The country's first exclusive technology, multiple scanning modes, both handheld laser scanning and fixed automatic scanning; it not only achieves the high accuracy of photo-based 3D scanners, but is also compatible with the strong adaptability of handheld 3D scanners to the workpiece surface. ;At the same time, the scanning speed is fast, freeing up manpower and improving efficiency.

Back to list

Product features

Multifunctional scanning

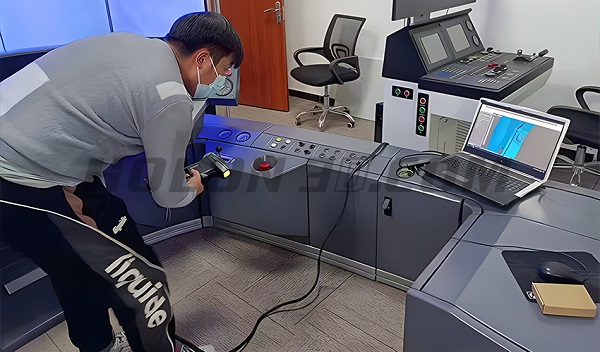

Automatic scanning mode, handheld scanning mode, freely select mode according to workpiece characteristics

Light source form - 49 blue laser lines

Scan faster, with higher accuracy and better stability

Various data acquisition methods

Fixed and automatic acquisition of point cloud data, hand-held landmark point splicing to obtain point cloud data

High-precision scanning

The accuracy is as high as 0.01mm, ultra-finely restoring the subtle features of the object's surface

Specification parameters

Mdoel	Magic
Scanning method	Auto scan mode			Handheld scanning mode
Scan data	Automatic acquisition			Sign point splicing
Light source	49 blue laser lines (wavelength: 450nm)
Measurement Rate	4,200,000points/s
Scan mode	Wide-Range mode	Standard mode	Precision mode		Deep hole mode
	34 crossed blue laser lines		14 crossed blue laser lines		1 blue laser line
Scanning distance	650mm		330mm		650mm
Scan depth of field	550mm		450mm		550mm
Data precision	0.02mm
Resolution	0.01mm(max)
Scanning area	800×600mm（max）
Scanning range	0.1-10m (expandable)
Volume precision	0.02+0.03mm/m
	0.02+0.015mm/m combined with HL-3DP three-dimensional global photogrammetry system (optional)
Operating software	HLScan (free lifetime upgrade)
Data formats	asc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized
Compatible software	3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) wait
Data transmission	USB3.0
Computer configuration (optional)	Win10 64-bit; video memory: 4G or above; processor: I7-13700 and above; memory: 64 GB
Laser safety level	ClassⅡ (eye safety)
	Certification number (Laser certificate): LCS200726001DS
Weight	0.92kg
Size	290x125x70mm
Temperature/ humidity	-10—40℃；10-90%
Power supply	Input:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max)
Certification	CE、IC、FCC、ROHS、ISO9001
Patent	ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4。
Warranty Period	24 months

High-precision scanning

The accuracy is as high as 0.01mm, ultra-finely restoring the fine features of the surface of the scanned object.
