As China becomes the world's largest automobile market, car modification has become a hot topic among car lovers. Our company HOLON3D recently cooperated with a large domestic automobile company to use three-dimensional digital technology to modify Ford cars ( The latest model in 2018) is scanned and modified to meet market demand and increase corporate competitiveness.

The scan is divided into two parts:

Ford car interior floor mat scanning, car cabin scanning

Since the Ford car scanned this time is large (the vehicle is about 4 meters long and the trunk is nearly 2 meters long) and the scan space of the car interior is narrow, which makes the scanning more difficult, the customer requested that the three-dimensional data of the car trunk and floor mats be quickly and accurately scanned and that they cannot be sprayed. Imaging agent, traditional scanning methods are inefficient and cannot completely obtain the three-dimensional data of a nearly 2-meter car trunk. Moreover, there are many limitations in scanning car interior floor mats. Traditional measurement methods cannot achieve the expected results and cannot meet customer needs.

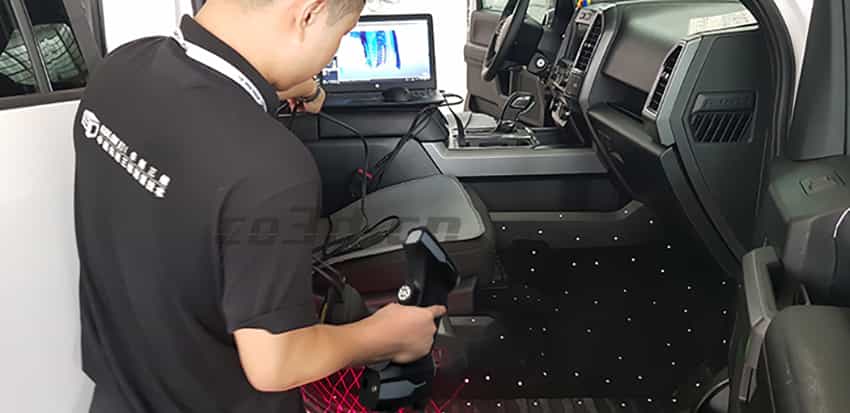

On-site scan data of car floor mats

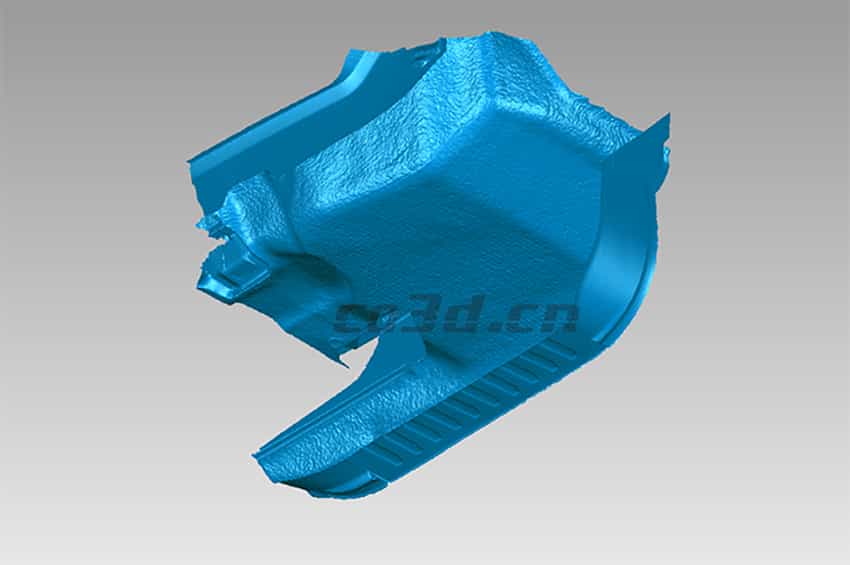

Car mat STL data chart

The Ford car is large in size, and the cabin scan is nearly 2 meters. The scan space of the car interior is narrow, which increases the difficulty of scanning. In order to effectively control the global cumulative error and scanning efficiency of 3D scanning, Hualang 3D adopts a targeted solution, using a handheld 3D scanner. Model 29 completed the scan of car trunks and car interior floor mats with a single machine. The fast scanning speed and high accuracy effectively solved all difficulties. This scan exceeded the customer's expectations. He was very satisfied with this measurement and provided the basis for subsequent car modifications and precise assembly. Testing buys more project time.

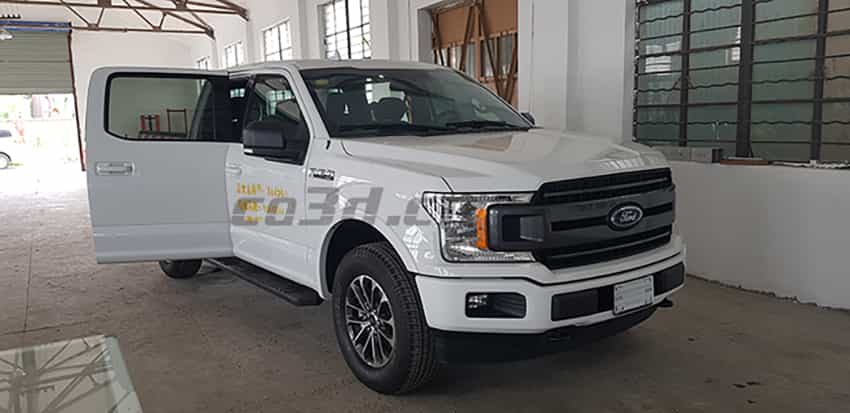

Ford car trunk scanning site

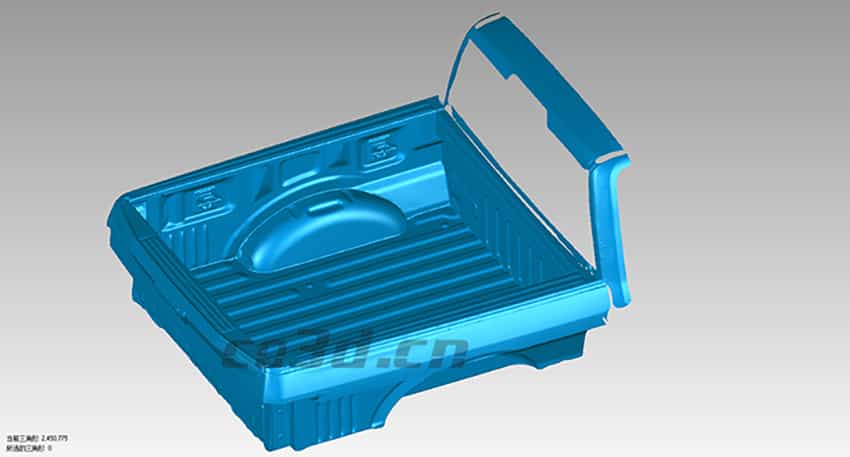

Ford car body STL data chart

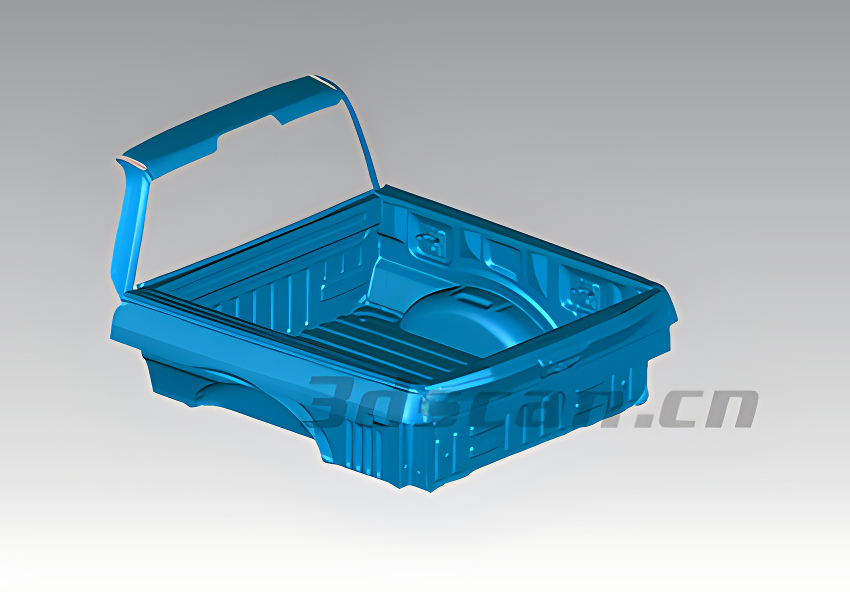

Ford car body STL data chart
