A well-known domestic automobile manufacturer needs to reverse design the automobile bumper. It uses the camera-type 3D scanner HL-3DS+ independently developed by HOLON3D to 3D scan the automobile bumper, and obtains high-precision 3D data to improve the quality of the automobile bumper. Secondary development efficiency saves costs and shortens the development cycle of new products.
1. Simply using traditional methods (such as inspection tools, fixtures, three-dimensional coordinates, etc.) to measure car bumpers is very cumbersome and time-consuming, and it is not easy to measure and detect the shape of car bumpers accurately and quickly.
2. Car bumpers have many curved surfaces and buckle parts, and the bumpers are relatively large and prone to deformation. It is difficult for ordinary 3D scanners to quickly and accurately obtain the 3D digital model of car bumpers.
The customer wants to further improve the produced car bumpers, save production costs and improve the product qualification rate. Therefore, HOLON3D engineers provide a professional solution: use the camera-type 3D scanner HL-3DS+ (quickly obtain high-precision 3D data of the car bumper) + reverse design software (convert the car bumper point cloud data into triangular mesh surface data ) assisted the company in the secondary design of automobile bumpers.

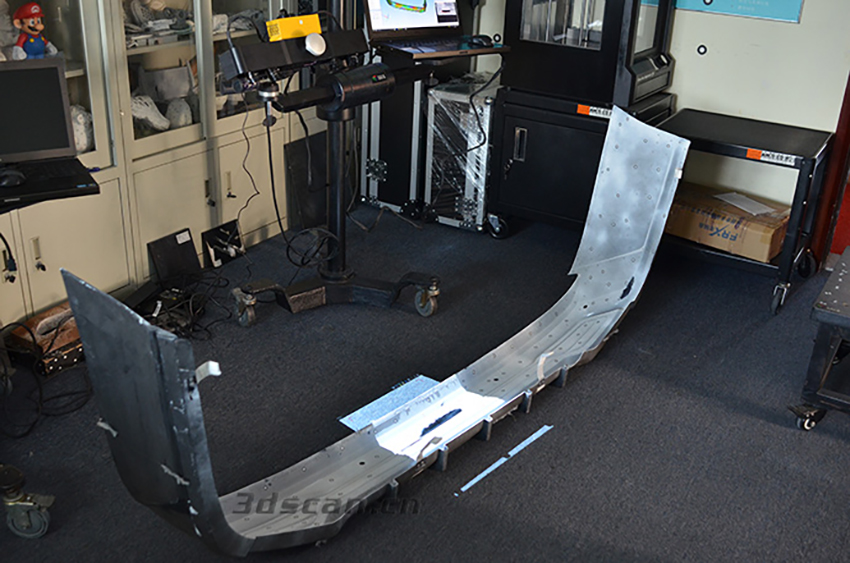

On-site scan of car bumper

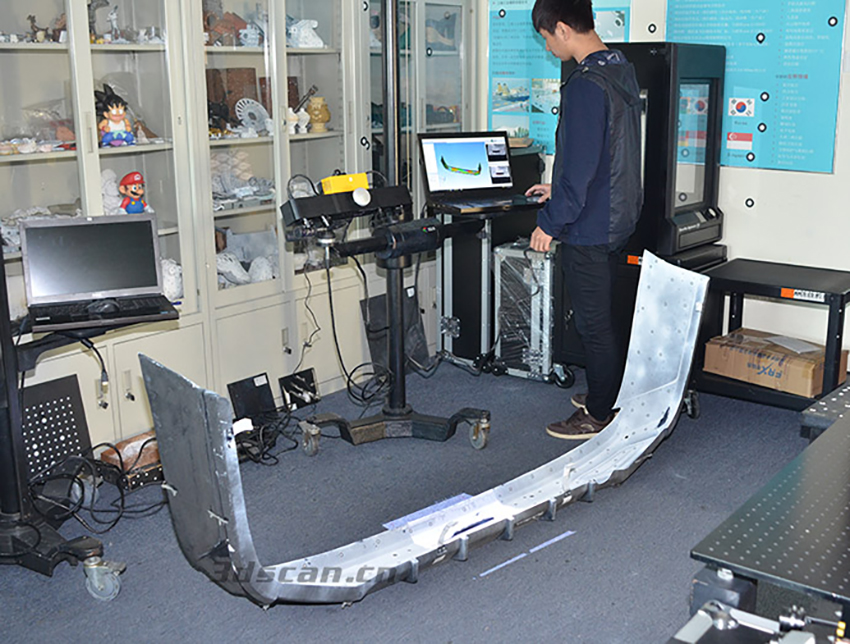

On-site scan of car bumper

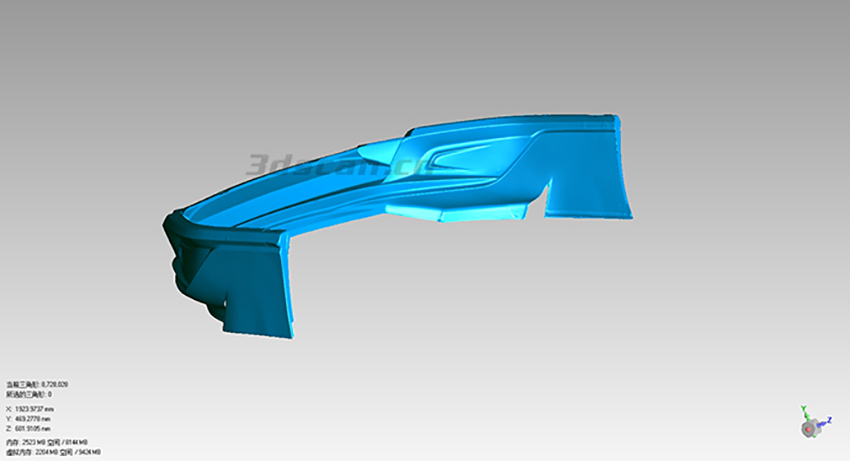

Car bumper STL data chart

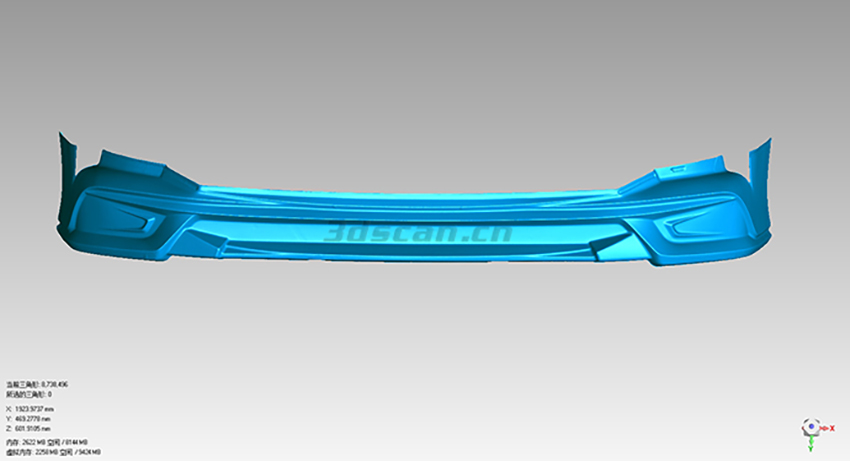

Car bumper STL data chart

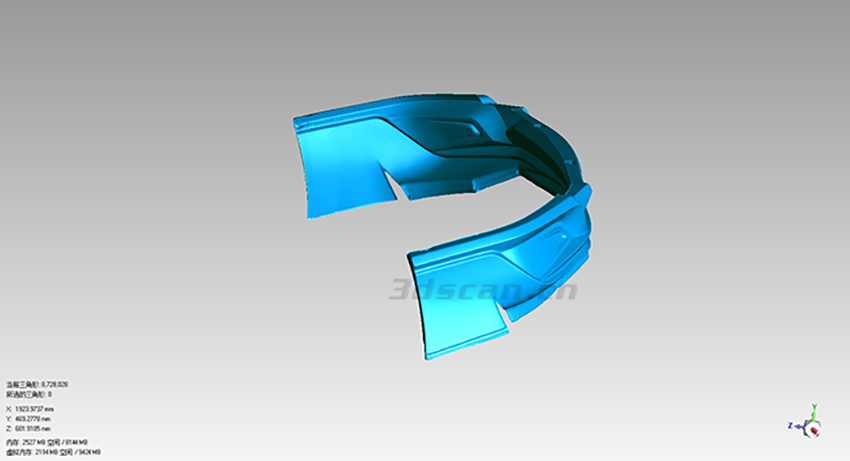

Car bumper STL data chart
